Descripción

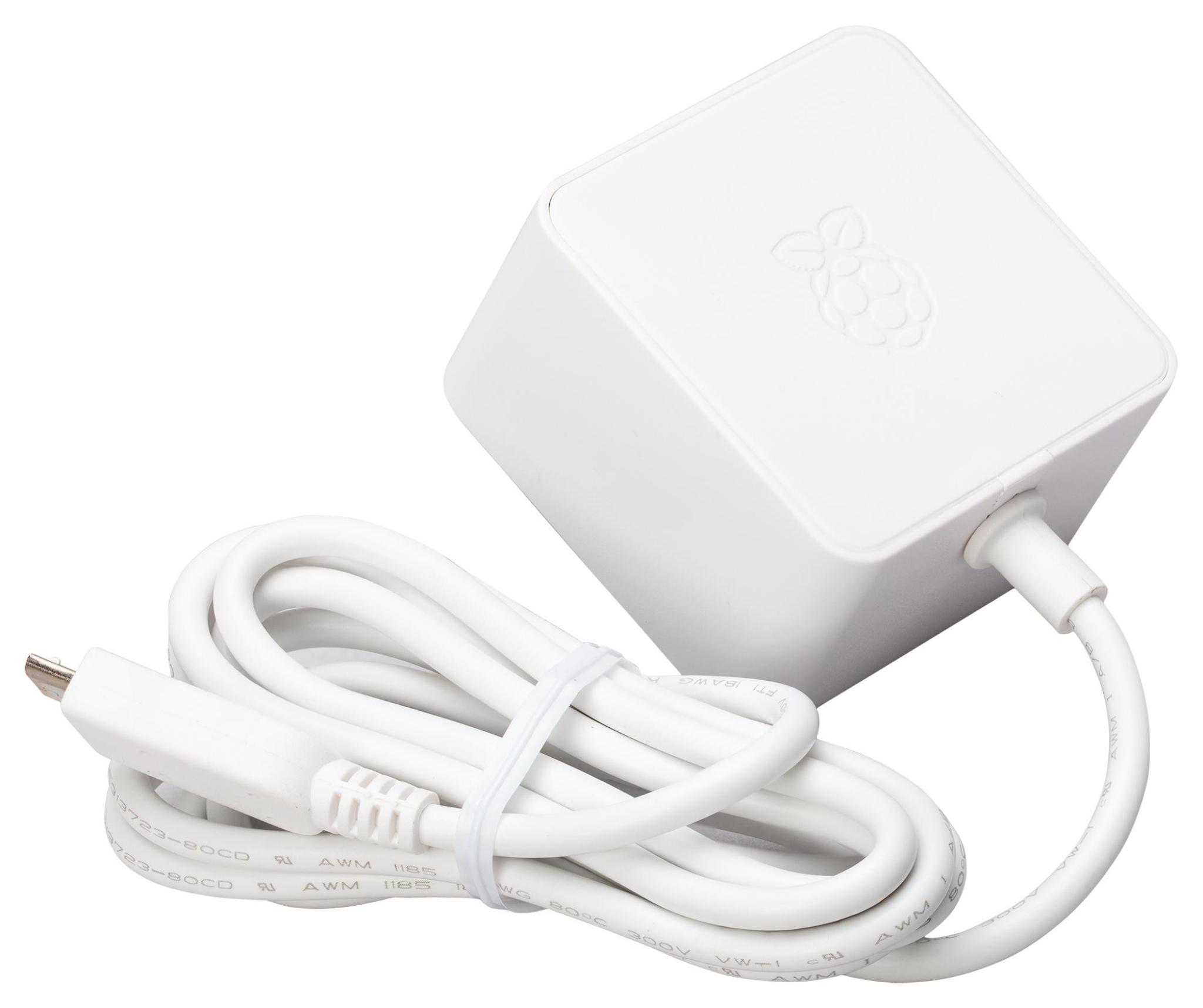

Fuente oficial Raspberry Pi de 12.5W con salida Micro USB Power Delivery diseñada para cualquier Raspberry Pi con ficha micro USB, capaz de entregar 5.1V y 2.5A para alimentar la placa y periféricos con estabilidad y seguridad.

Carecteristicas técnicas

Output
Output voltage: +5.1V DC
Minimum load current: 0.0A
Nominal load current: 2.5A
Maximum power: 12.5W
Load regulation: ±5%
Line regulation: ±2%
Ripple & noise: 120mVp-p
Rise time: 100ms maximum to regulation limits for DC outputs
Turn-on delay: 3000ms maximum at nominal input AC voltage
and full load
Protection: Short circuit protection
Overcurrent protection
Efficiency: 80.73% minimum (output current from 100%, 75%,
50%, 25%)
Output cable: 1.5m 18AWG
Output connector: micro USB
Input
Voltage range: 100–240Vac (rated)
96–264Vac (operating)
Frequency: 50/60Hz ±3Hz
Current: 0.5A maximum
Power consumption (no load): 0.075W maximum
Inrush current: No damage shall occur and the input fuse shall not blow
